Description
- Brand: Draw-Tite
- Model: 248990 118420 63820 63810 580407 2211
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Custom Fit Trailer Hitch

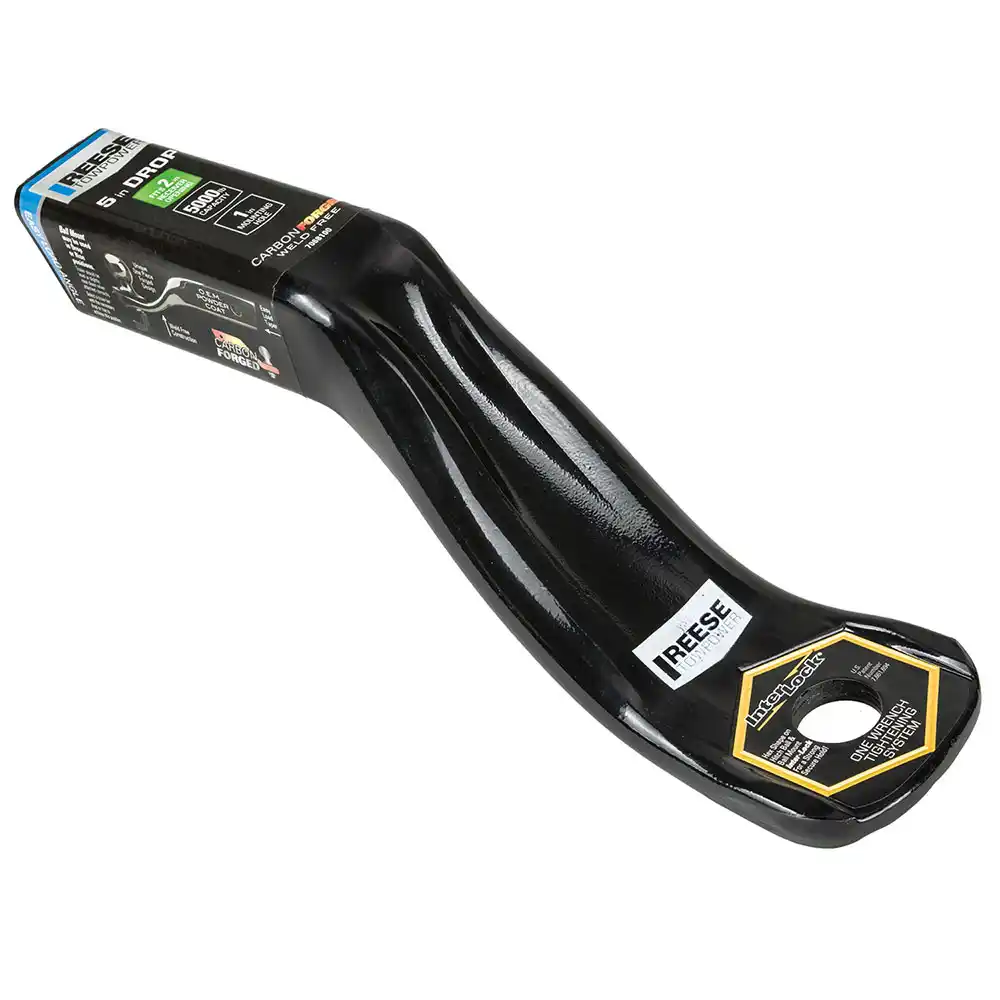

Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8″ and 2″ Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2009 – 2014 Acura, TSX, 4 Dr. Sedan
2008 – 2012 Honda, Accord, Coupe
2008 – 2012 Honda, Accord, Sedan
Trailer Hitch Specs:
| Part Number | 248990 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4″ |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |
Wiring Kit Specs:
| Part Number | 118420 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |
Hitch Ball Specs:
| Part Number | 63820 |
| Brand | Draw-Tite |
| Size | 2″ x 3/4″ x 1-1/2″ |
| Towing Capacity | 3,500 lbs. GTW |
| Material | Chrome |
| Torque | Torque to 160 ft. lbs |
| Shank Diameter | 3/4″ |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63810 |
| Brand | Draw-Tite |
| Size | 1-7/8″ x 3/4″ x 1-1/2″ |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 3/4″ |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2″ and 1-7/8″ Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4″ Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4″ receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4″ x 1-1/4″ hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Questions or Comments? Call our website customer service
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8″ ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at our website customer service
Partial list of fitment years: 08 09 10 11 12 13 14 2008 2009 2010 2011 2012 2013 2014
